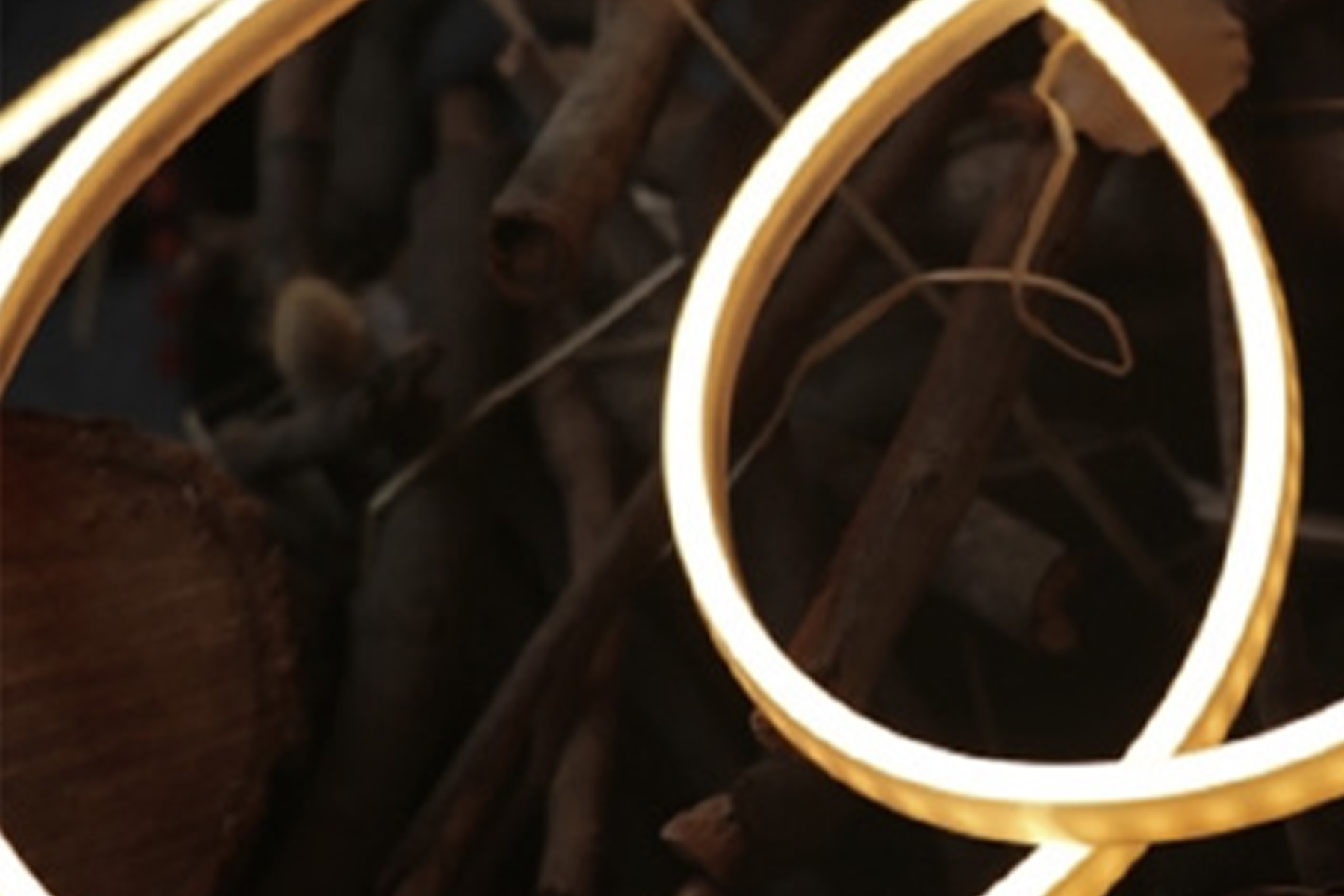

Threadsnake Snake Light

Our LED Snake Light System consists of surprisingly few components and can be installed with the minimum of fuss. Snake Light features innovative design in that the power cable to the snakelight enters the strip from the side, end or from underneath. May be installed in extrusion channels or in routed surfaces. This allows the following visual and installation benefits:
1. No ‘dead spots’ or visible joins, resulting in a neater, more finished job appearance
2. Factory sealed ends providing absolute waterproofing.

Watts: 10W

Bending Direction: Horizontal

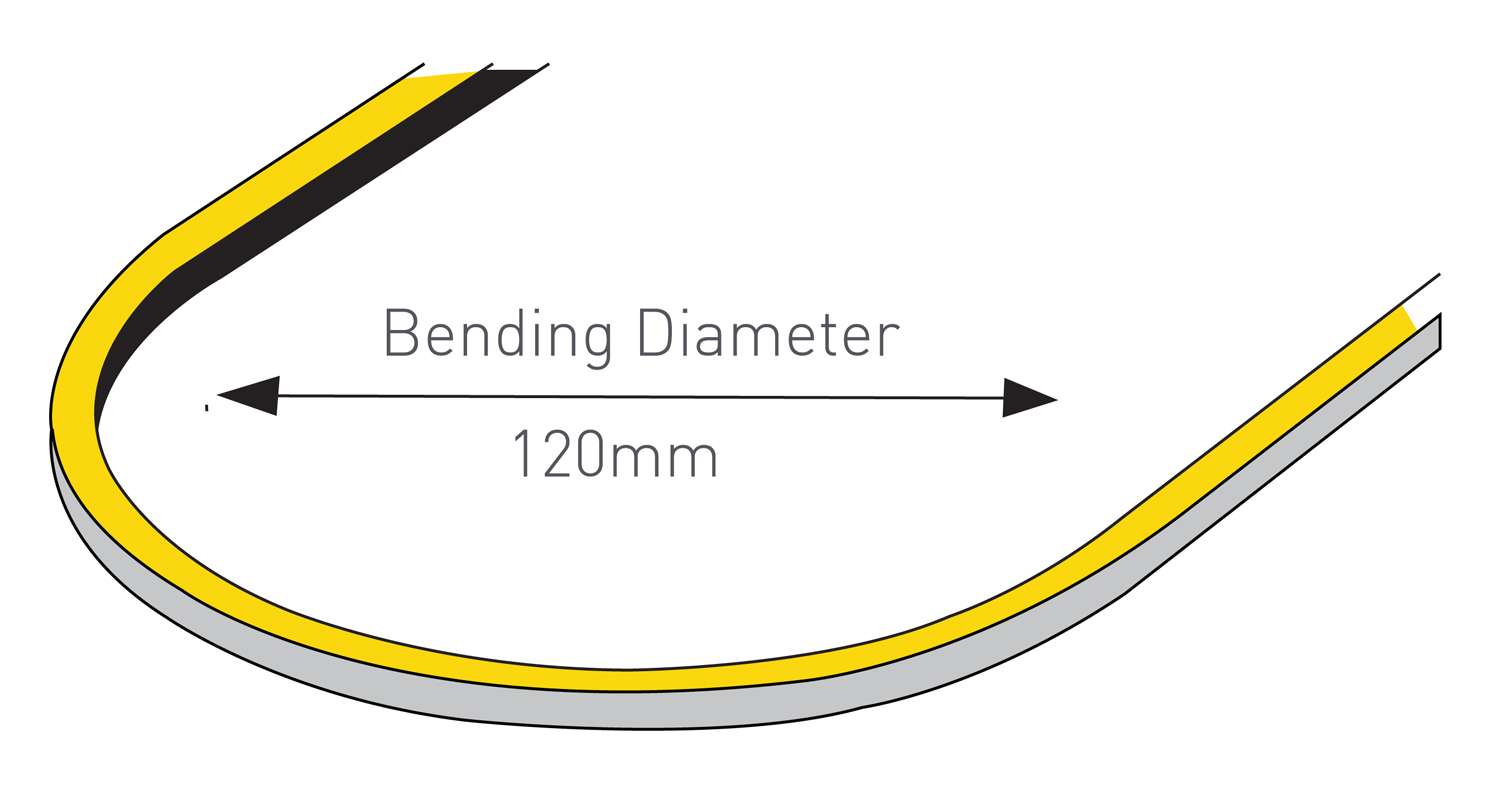

Bending: Ø120mm horizontal

Snake Dimension: 6(W) x 12(H)mm x Custom Length

Extrusion Dimension: 8(W) x 13(H)mm x Custom Length

Beam Angle: 120°

Voltage: 24vDC

Cutting: 50mm increments

Material: Silicone

CRI: >90
