Santo

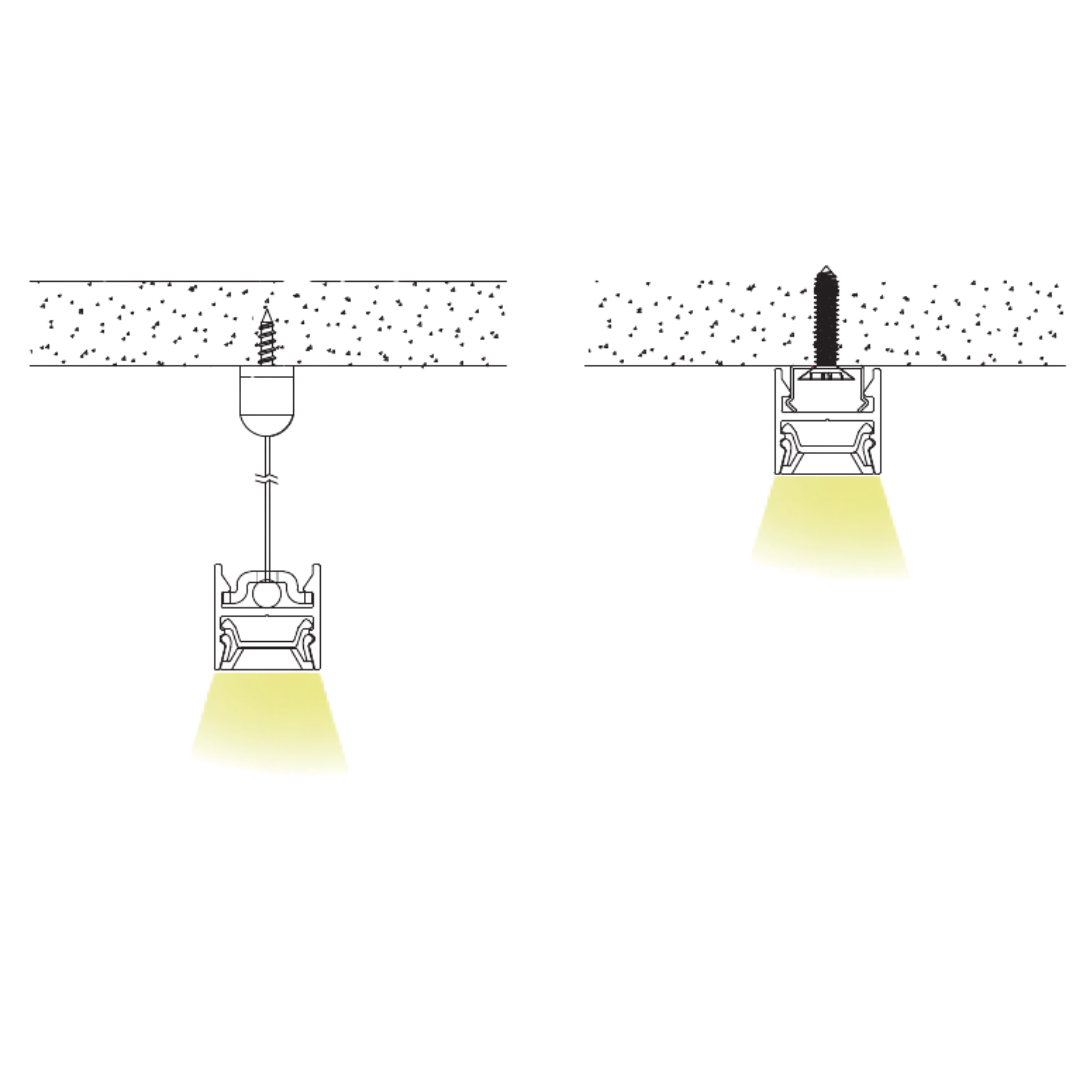

A compact 15×15mm aluminium LED profile designed for precise architectural linear lighting. Featuring anti-glare optics and flicker-free illumination, it delivers clean, controlled light for modern interiors and detailed lighting applications. Suitable for surface-mounted or suspended installations.

Colour: Satin Anodised, Standard Powder Coated, Special Powder Coated, Standard Plated, Aged Plated

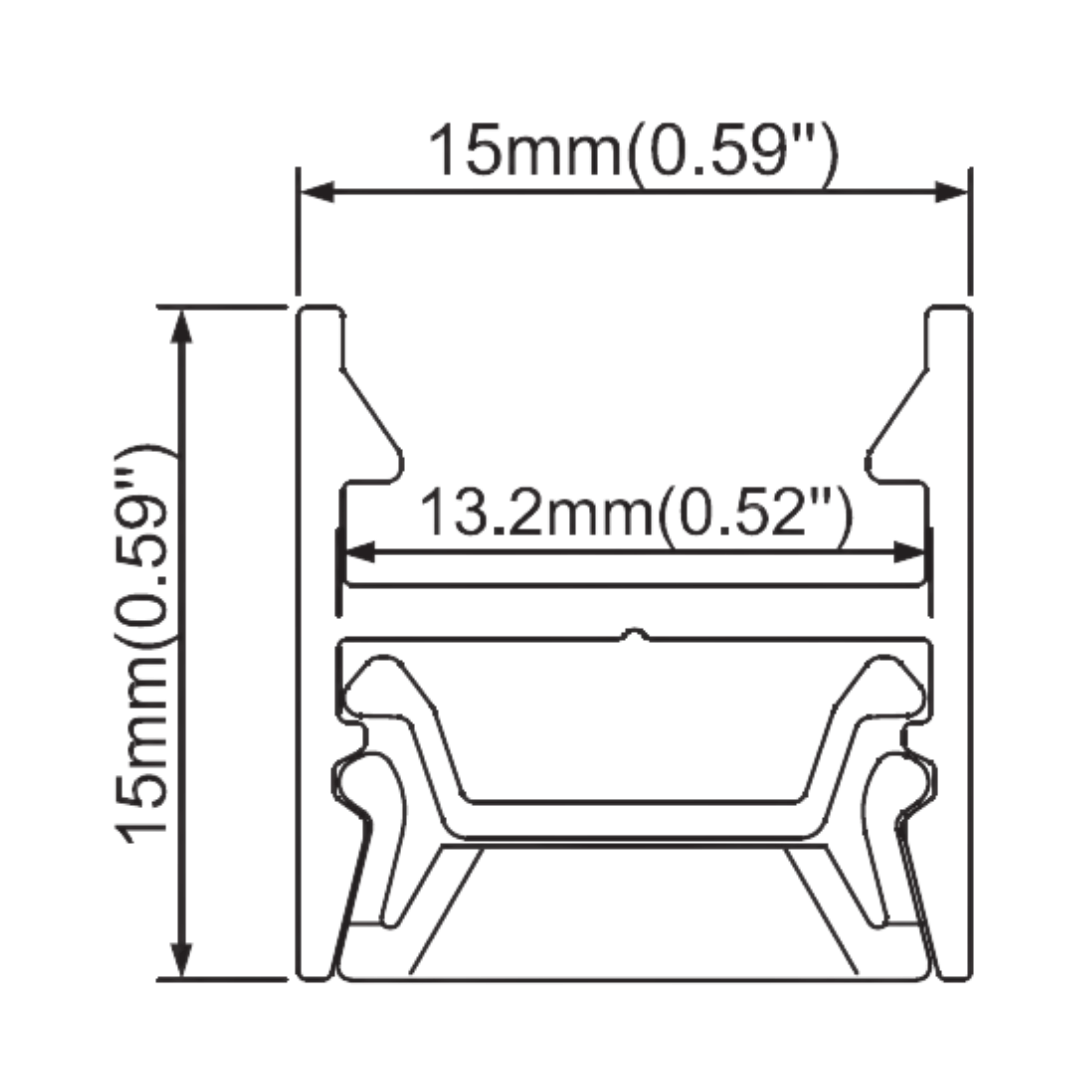

Dimensions: 15(W) x 15(H)mm x Custom Length

Watts: 14.4W, 19.2W

CCT: 2400K, 2700K, 3000K, 4000K, 6000K, CCT Adjustable, RGB, RBGW, Dim to Warm

Lumens: 1100 (14.4W), 1500 (19.2W)

IP Rating: IP20

Voltage: 12vDC / 24vDC

Driver Location: Remote

Dimmable: Non-Dimmable, Triac, Dali, 0-10v, Casambi

Material: Aluminium

CRI: >90

2 in stock
